ISONRG - Heat meter ISONRG ML311
ML311 is a BTU meter usable for any kind of flow meter with pulse or analog output as: Turbines, Bulk, Woltmann, Impellers, Single or Multi jet, Ultrasonic and, of course, Electromagnetic meters. ML311 is also certified MID004 referring to EN1434 norms following Directives 2004/22, very important for European market. The new BTU meter has got a very accurated calculation either for water or other fluid as Glycole, an automatic switch from hot to cool for cogeneration and trigeneration plants, a large 12 months logger and can get until three pulses signals use to cold and heat home water. ML311 can be connected to any kind of thermistor probe as PT100/500/1000 with 2 or 4 wires. It can also transmit data by different protocols as RS232, RS485, MODbus, BACnet, Mbus.

ISOMAG - Electromagnetic flowmeter converter alphanumeric display ML110
The ML110 converter is mainly used in the water market, HVAC and in industrial applications where average requirements are needed. Accuracy: ± 0,8% of the read value (optional ± 0,4% of the read value). Repeatability: ± 0,2% With or without display. Programming through 3 internal keys or PC. Galvanic separation: all inputs and outputs are separated one each other and with the power supply. Housing material: Glass fibre nylon. Programmable functions: low flow rate cut-off, bidirectional, double range, peak cut-off, empty pipe detection, alarm limit and so on. It can be coupled with all Isomag sensors with the exception of the MS4000. For further information, please check the attached data sheet.

ISOMAG - Wafer sensor for electromagnetic flow meter MS1000
The MS 1000 ‘wafer’ sensor is easy to be mounted thanks to the absence of flanges; it can be installed by inserting it between counter flanges of various type (UNI, DIN, ANSI, JIS etc.). It is suited for all the principal applications, in particular for the markets of water and HVAC and in cooling plants. Body material: Carbon Steel and SS Nominal diameter: from ND 25 to ND 400 Flow range: 0…4.500 m3/h Nominal pressure: from PN 16 to PN 40 Wide choice of process connections. Liquid temperature: from -20 to +150°C Wide choice of lining materials. Wide choice of electrodes materials. Accuracy and repeatability data are according to the chosen converter (see converters section). For further information, see the enclosed technical data sheet.

ISOMAG - Flanged sensor for electromagnetic flow meter MS2500
The MS 2500 ‘flanged’ sensor , for universal utilization, suited for all the application and flow ranger, is available with the widest diameters range. Body material: Carbon Steel and SS AISI304/316 Nominal diameter: from ND 25 to ND 2000 Flow range: 0…113.000 m3/h Nominal pressure: from PN 6 to PN 250 Process connections: flanges according to all international standards. Liquid temperature: from -20 to +180°C Wide choice of lining materials. Wide choice of electrodes materials. Accuracy and repeatability data are according to the chosen converter (see converters section). For further information, see the enclosed technical data sheet.

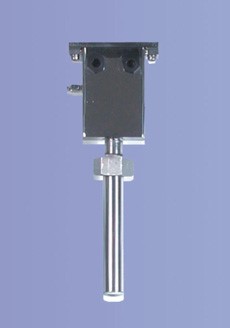

ISOMAG - Insertion sensor for electromagnetic flow meter MS 3770
The MS 3770 ‘insertion’ sensor is suitable for the mounting in non-pressurised pipe lines with diameter ranger from ND 80 to 8000 mm. It is ideal for the pipe lines monitoring and in the HVAC market. Sensor material: SS AISI304/316 Wide choice of pipe diameters. Nominal pressure: from PN 16 to PN 64 Process connections: threaded or flanged Liquid temperature: from -20 to 150°C Lining materials: PTFE Electrodes materials: AISI316 Accuracy: +/- 2% of the read value (whatever converter is used). For further information, see the enclosed technical data sheet.

ISOMAG - MS3790 compact blind insertion flow-meter
Compact, blind insertion flow meter which integrates in the same body sensor and converter . Full stainless steel construction with electrodes in AISI316. Electrical connections through 5 pole connector Available in three different sizes to cover pipes from DN80 to DN2000 Configuration via PC Digital and analogue outputs Minimum conductivity value 20 µS/cm Power supply 18-30 VDC Accuracy: ± 2% of reading Max pressure line 16 bar For more information, refer to the enclosed data sheet

ISOMAG - MS3900 compact electromagnetic flow meter
Compact flow meter which integrates in a the same body the sensor and the converter Sensor body in galvanized zinc steel PTFE coated with SS electrodes. Available sizes DN10 –DN 15 and DN20 Threaded process connections Configuration via PC Pulse and Analogue outputs Capability to measure the process temperature Suitable for flow control where flow might need to be controlled according to the temperature such as cooling systems on tooling machines, washing systems etc. Please refer to the enclosed documentation for further information.
