Sauter
Hardware

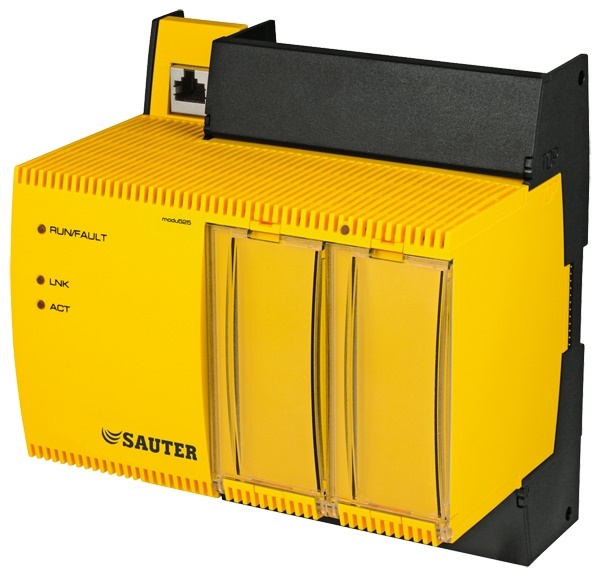

EY-AS 524, 525
SAUTER EY-modulo 5 technology: modular, fast and universal.

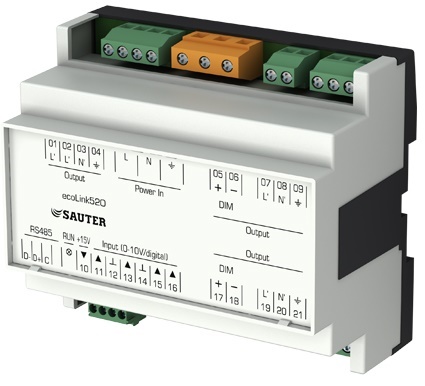

EY-EM 520, 521, 526
Optimum adjustment to applications by means of module technology. Less wiring needed.

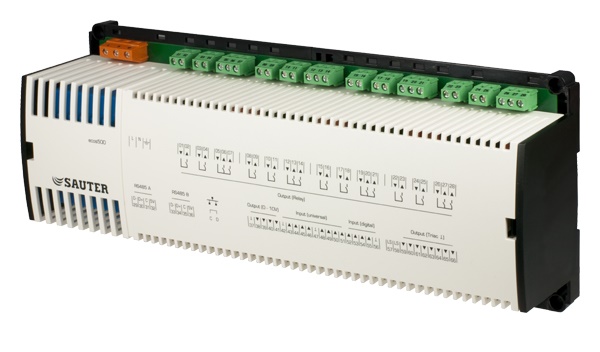

EY-RC 500
Powerful function modules in the ecos500 allow energy-optimised room control and the control of lights and blinds, and thus guarantee minimum energy consumption.

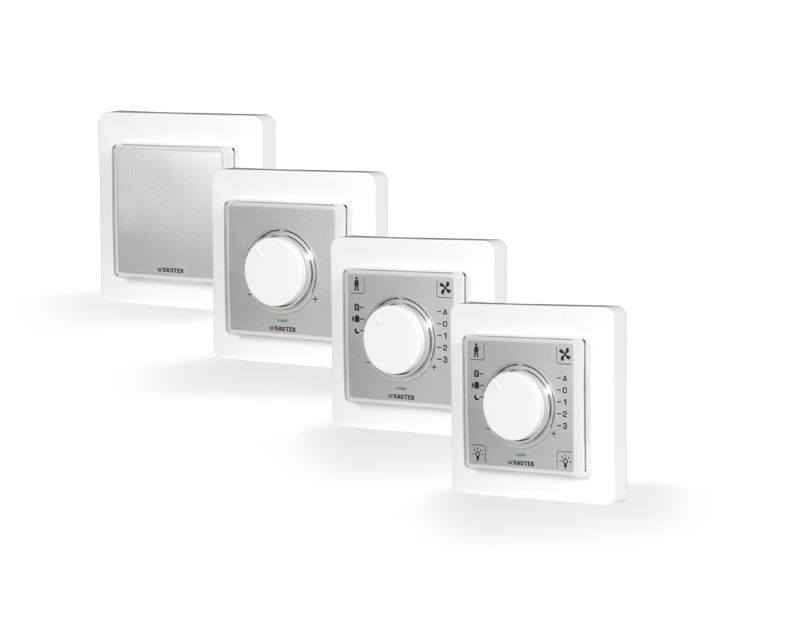

EY-RU 310, 311, 314,and 316
Individual setting of occupancy and absence as well as room setpoint correction, control of lights and window blinds for optimum energy usage in the room. Visualisation of the local energy consumption by means of multicolour LED indicator.

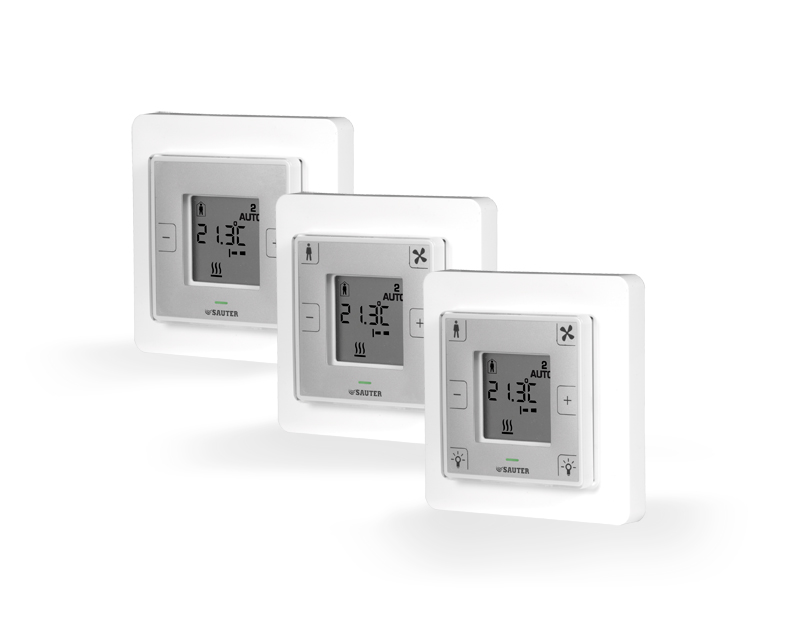

EY-RU 341, 344,and 346
Individual setting of presence and absence as well as room setpoint correction and control of lighting and window blinds for optimum energy usage in the room. Visualisation of the local energy consumption by means of multicolour LED indicator.
Central Software - Vision Center
SAUTER Vision Center: Central building management and visualisation of decentralised installations
SAUTER Vision Center (SVC) is a web-based building management solution in the HTML5 standard for running and visualising the building operation. SAUTER Vision Center is suitable for both larger single buildings and entire real estate parks or distributed premises. Typical areas of use are building complexes, business parks, college and industrial campuses, airports, railway stations, hospitals or internationally distributed branch networks. The modular concept allows the software to be extended precisely to meet the customer requirements of every installation. Therefore, SAUTER Vision Center gathers all of the data for the entire building and energy management and makes it available to the user from anywhere at all times.

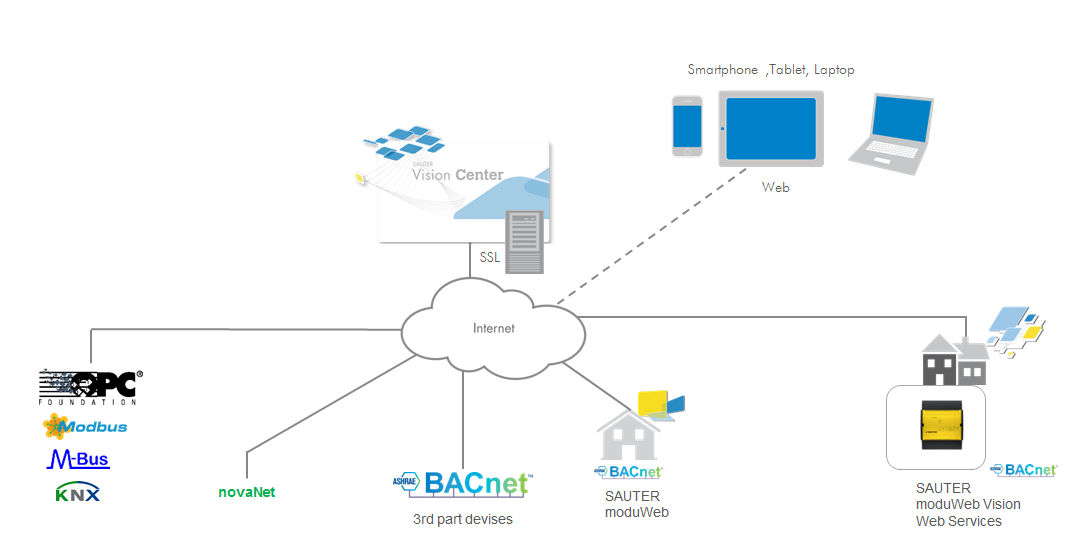

For the integration of individual equipment systems, SAUTER Vision Center supports the manufacturer-independent BACnet standard (B-AWS certified), as well as connection to OPC servers for integrating different protocols in the building automation. In order to fully support the integration options, it is also possible to directly connect SAUTER moduWeb Vision via web services and SAUTER novaNet installations. This makes it possible to connect existing systems when converting to the new generation of building management software without having to replace the existing automation level.
SAUTER Vision Center sends alarms directly via e-mail or text message to mobile phones according to the responsibilities assigned. With its many user-defined settings in customisable dashboards, SAUTER Vision Center guarantees maximum user convenience.
The energy monitoring module integrates energy meters and other data from the buildings to create a comprehensive energy consumption display. Thus, daily, weekly, monthly and annual consumption can be automatically calculated and represented in diagrams. The maintenance module for SAUTER Vision Center is also used for the optimum planning and efficient execution of servicing and FM tasks. Here support is also provided by plant device data capture, the definition of maintenance intervals and the automatic triggering of maintenance cycles based on building management information. This enables complete concentration on the monitoring and evaluation of the installations, as well as their continuous and optimum operation, and contributes to efficient, sustainable building and energy management. SAUTER Vision Center can be deployed in virtual IT environments and uses Microsoft SQL databases. These modern architectures and infrastructures enable topics such as high availability, redundancy via cluster systems and corresponding load assignments (provisioning) to be implemented and used. (Scalable via MS SQL Express up to SQL Enterprise depending on the specified properties, virtual IT environments and high-availability VMware & SQL Enterprise.)
Dashboard
- Individual creation of dashboards as the starting page in the operation of the installation, or as an overview page for key figures and graphics for various installations, buildings or combined premises.
- Energy dashboard in combination with the SVC energy monitoring module with various key figures and graphics for the current and historical consumption display.
- The integration of energy monitoring into the building management makes it possible to display real-time values.
The dashboard contains design templates and is equipped with various widgets. The layout automatically adapts to the size of the screen/device (responsive design) and the individual widgets can be freely arranged using drag & drop.
Room automation
- Visual display of rooms and related room segments, as well as information on the temperature, air quality, lighting, window blinds etc.
- Flexible assignment of the individual room segments and the related changes to the room automation configuration using drag & drop. This enables room sizes, from open-plan offices to various large offices, to be adjusted according to requirements for 1 to x employees.
- These functions are enabled via the native integration of SAUTER room automation devices (ecos504, ecos505 (both BACnet/IP), ecos500 (BACnet/IP) and ecos311 (BACnet MS/TP)).
Scenario manager
The scenario manager enables the easy starting, planning and changing of predefined switching procedures. This makes it possible to set rooms, for example, to Comfort or ECO mode at precise times according to user requirements.
Scenario manager
- Module for planning of servicing and maintenance schedules and for use documentation
- Recording of plant devices with additional information
- Definition of maintenance intervals
- Definition of criteria for automatic triggering of a maintenance order
- Recording and documentation of the maintenance work
HTML 5 - independent of location and platform
- Can be used with any operating system on smartphones, tablets or desktop PCs without setting up inconvenient plug-ins.
- “Responsive design” enables optimum display on devices with various resolutions.
Integration options
- Native BACnet client (B-AWS certified)
- OPC UA client and OPC UA server
- OPC DA via UA/DA gateway (gateway supplied)
- moduWeb Vision BACnet server via web services
- SAUTER novaNet
