HVAC Control Product

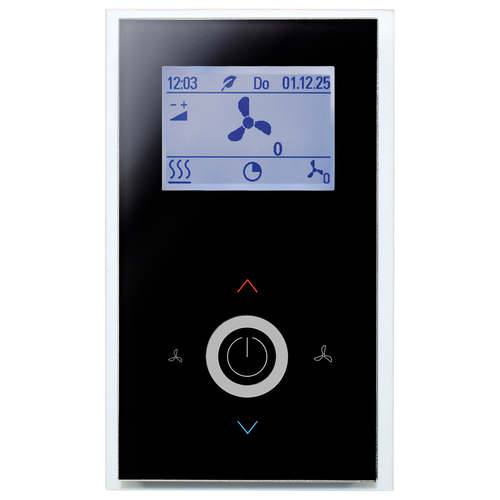

The fancoil controller with radio receiver in high-quality design is used for individual temperature control and control of fancoil units in hotels, offices and living rooms. The device is designed for four- or two-pipe systems with changeover. Two configurable inputs can be used as sensor input, room occupancy or energy lock. In addition to wired continuous valve actuators (also 6-way valve) and a 0..10 V EC motor, sensors and actuators can also be controlled by radio. In addition, as an alternative to wired sensors, an external radio temperature sensor, radio motion detector, a radio temperature sensor for changeover function and radio window contacts/handles can be learnt in. The override by radio is possible by means of higher-level controller profile and cable-bound via Modbus. Radio and wired sensors and actuators are processed identically and can be used in any combination. This guarantees individual and energy-efficient room air conditioning. The device (front of glass in white or black) has a monochrome display and touch-sensitive control buttons. It has a timer with three time channels of four time periods each. Mounting is designed for a flush-mounted box. For hotel applications, the device offers the option of an additional zone (bathroom heating) in conjunction with room temperature sensor and radio actuator SAB+/SAB05.

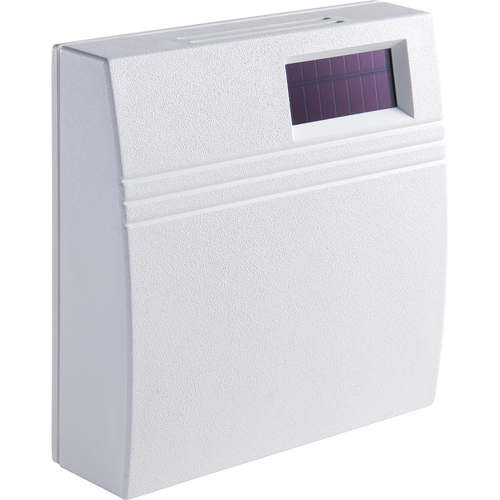

Energy-harvesting room operating unit for integrated measurement of temperature and relative humidity (rH version) in residential and office spaces. Also available with rotary switch for fan level adjustment, slide switch (for example, "Day/Night") or occupancy button. The device is mounted via adhesive pad or screws and sends its values unidirectionally to corresponding receivers or gateways, which process the information directly or – depending on the application – forward it to a central control unit.

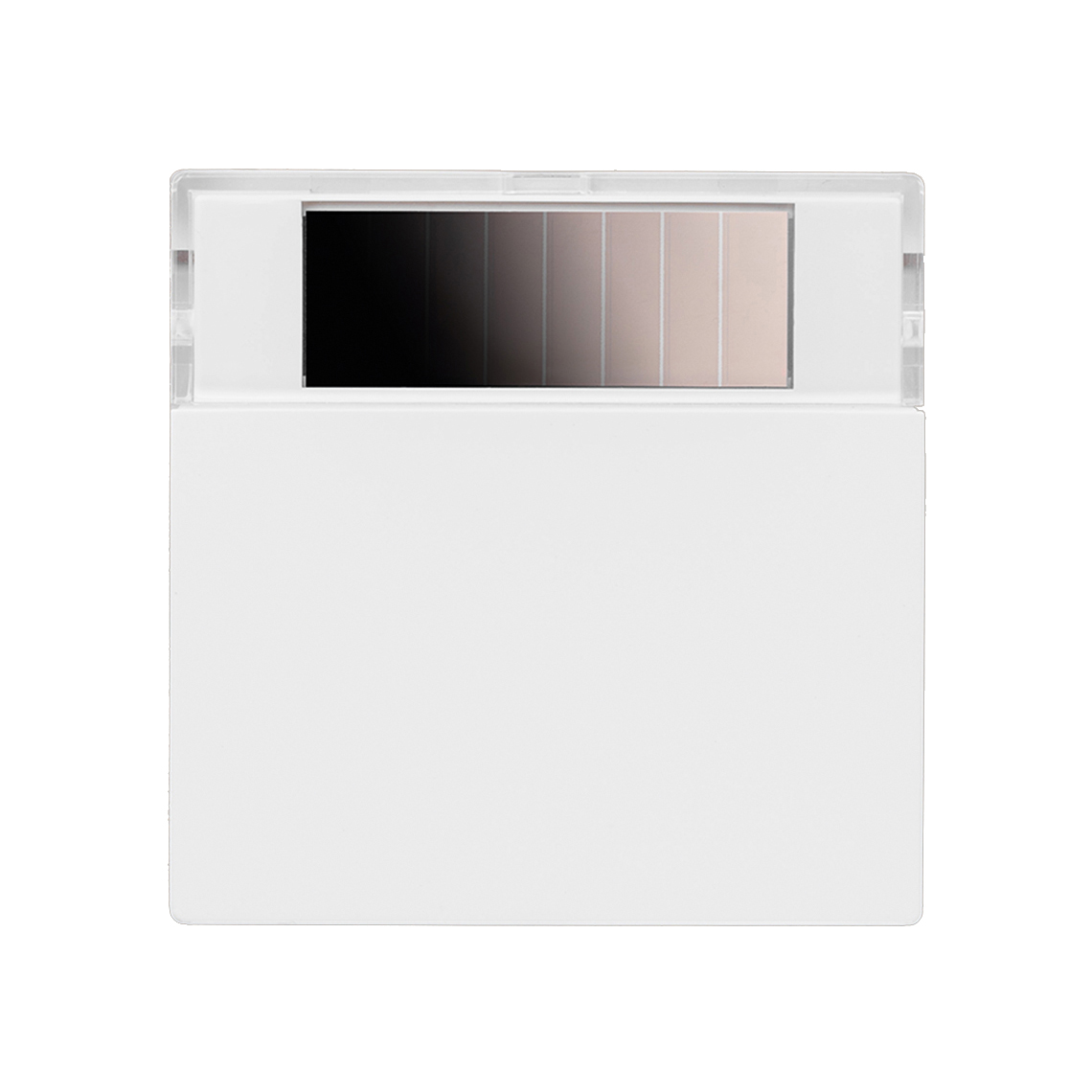

Energy-harvesting high quality designed radio room sensor for measuring temperature in living and office space. The device sends its measured values unidirectionally to corresponding receivers or gateways, which process the information directly or – depending on the application – forward it to a central control unit. It can be integrated into a wide range of popular switch ranges, allowing you to choose from many high-quality designs. To be mounted using an adhesive pad or screws.

Room sensor for humidity and temperature detection in illuminated room/space applications. For device with operating elements, adjustable telegram intervals and battery backup please refer to product SR04 rH.

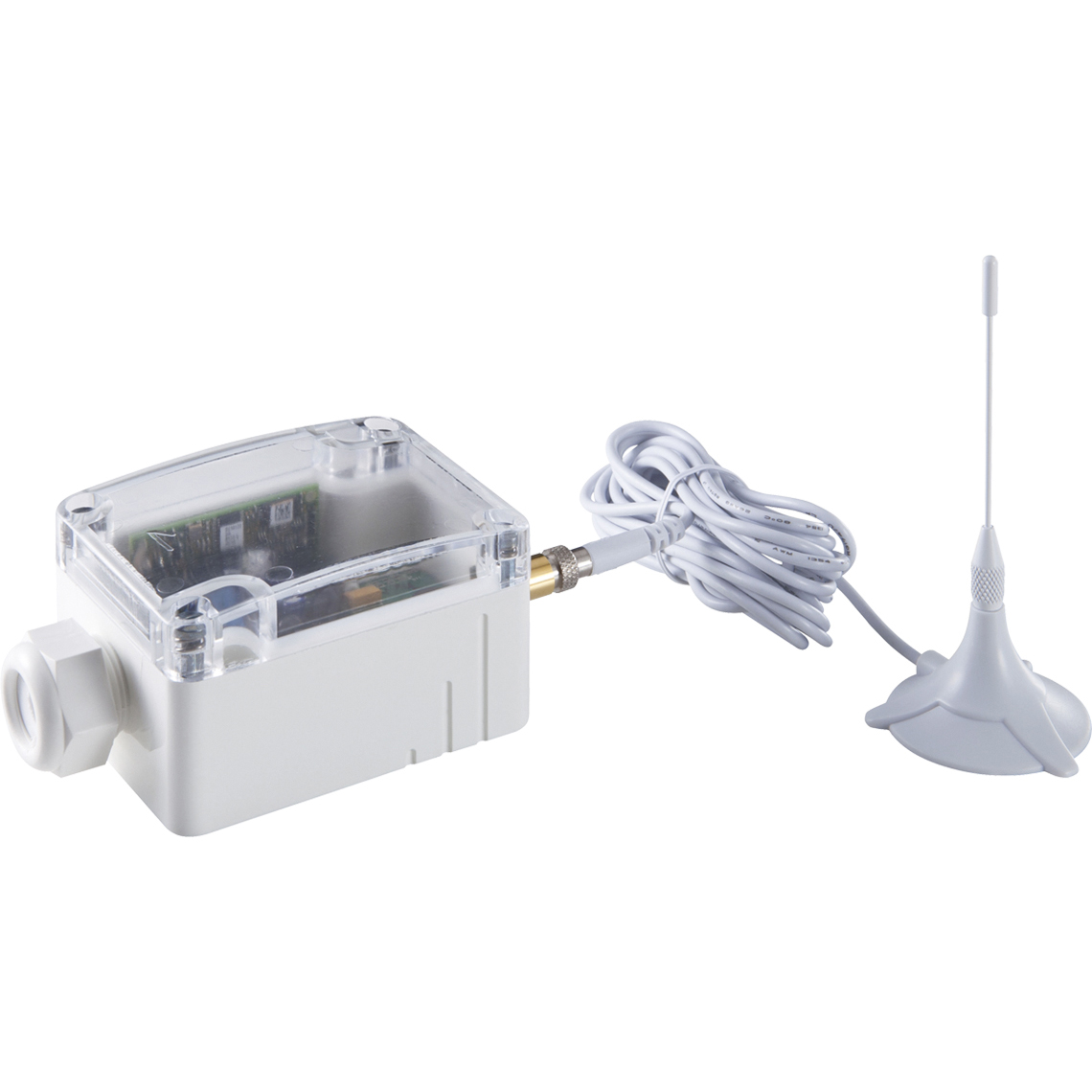

Bidirectional gateway with interface RS485, Modbus protocol, IP42-enclosure. For evaluation of up to 32 EasySens^Ⓡ sensors or wireless switches. Transmission of field-programmed telegrams to 32 addresses and 32 channels for bidirectional communication with SAB+/SAB05. Incl. ext. transmitting/receiving antenna (2.5 m).

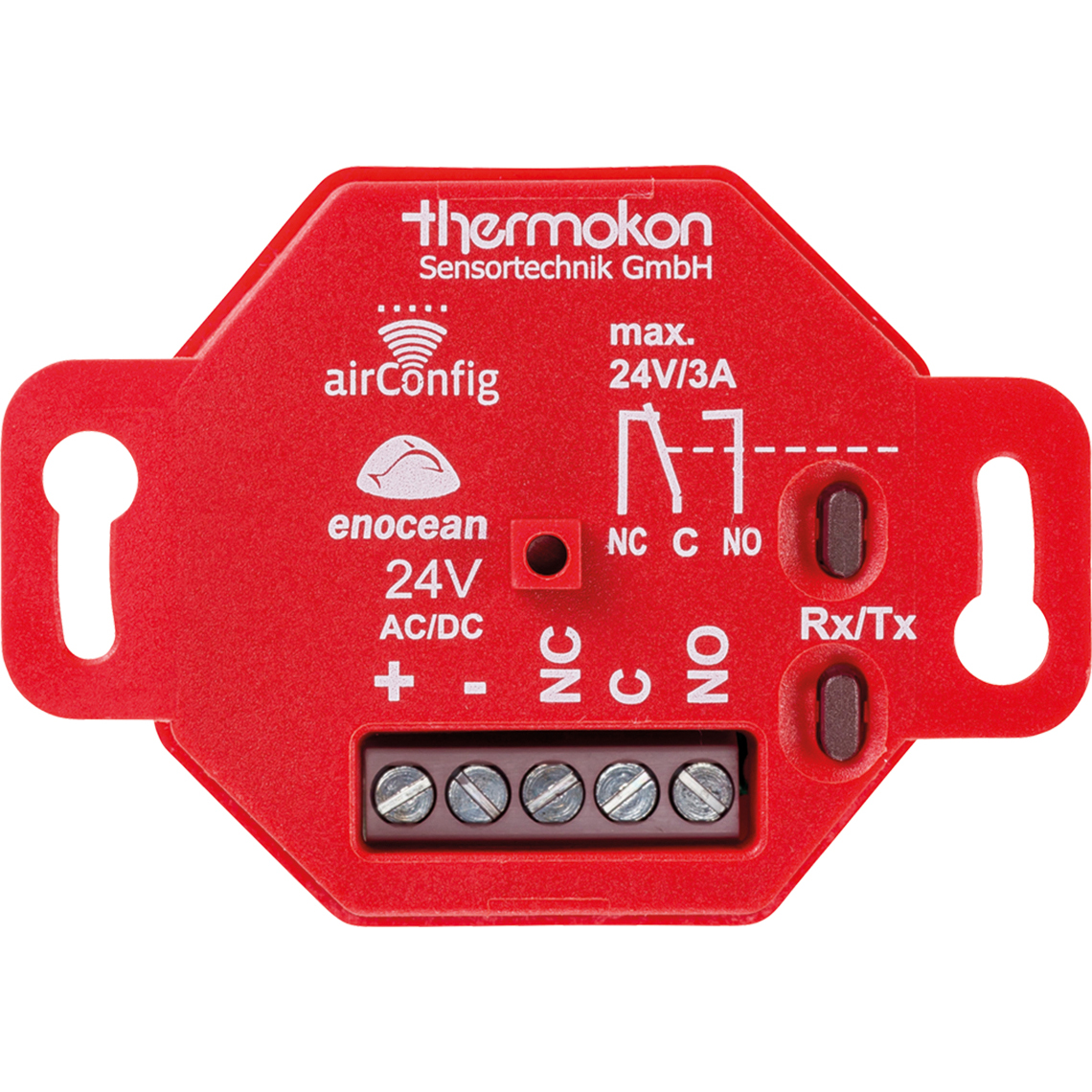

The bidirectional flush-mounted radio receiver for EasySens^Ⓡ devices with relay output. The basic function can be configured individually by the user for heating with PWM, heating on/off, signal contact, hygrostat control, heating/cooling with PWM, light on/off or for fan release using the free Thermokon airConfig software as required.
